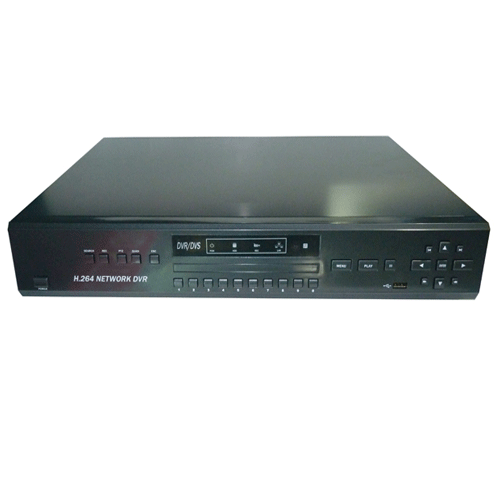

16-Channel H.264 Networked High Definition CCTV Video Recorder with 3g mobile compatible
Price:
$489.00
Price in reward points: 4890 Product Code: SDDVRW41
Reward Points: 48
Shipping & Handling: 5-7 Working Days to Your Door
Product Features:
1. H.264 compression ideal for standalone DVR.
2. Realtime display up to 16 cameras;
3. Support mobile multi-screen monitor.
4. Support USB2.0 and full control by USB mouse;
5. The operation system is similar to Mircosoft WINDOWS;
8. Powerful network services (support DHCP, PPPOE, FTP, DNS, DDNS, NTP, EMAILl, IP permissions,
IP searches, Alarm Center, etc.)
9. unique triple watchdog function and low electricity consumption;
10. Support for multiple languages: Chinese, Traditional Chinese, Russian, English, Italian, Portuguese,
Spanish, French, German, Japanese, Greek, Thai
| CCTV DVR | |
| Compression | H.264 |
| Video Format | NTSC / PAL |
| Video Input | 16×BNC(1.0Vp-p, 75Ω) |
| Video Output | 1×BNC(1.0Vp-p, 75Ω)；1×VGA |
| SPOT Output | N/A |
| LOOP Output | N/A |
| HDMI Output Resolution | N/A |
| YPbPr Output Resolution | N/A |
| VGA Output Resolution | 1280×1024 |
| Live Frame Rate | 24×25fps(PAL), 24×30fps(NTSC) |
| Network Resolution/fps | CIF each channel>20fps |
| Record | 4D1+12CIF resolution recording, 400fps/PAL,480fps/NTSC |
| Playback | Support 16/8/4/1 channel playback |
| D1 Record Frame Rate | 400fps/PAL,480fps/NTSC |
| CIF Record Frame Rate | 400fps/PAL,480fps/NTSC |
| Audio | RCA×8 input, RCA×2 output |
| Alarm Input | 8channel |
| Alarm Output | 8channel |
| Alarm Mode | sensor input alarm; disk full alarm; motion detection alarm; video loss alarm |
| Remote Control | Yes |
| Record Mode | Time/sensor/motion detection |
| Network Port | 1, RJ-45 |
| USB Port | 2, USB2.0 |
| Hard Disk | Support 1TB-2TB(SATA HDD)(maxi)x2pc |
| DVD-RW | Optional / USB |
| PTZ Control | RS-485 |
| USB Mouse | Yes |
| Power Supply | AC220V(110V) |
| Operating Temperature | -10℃--＋55℃ |
| Operating Humidity | 10％--90％ |
