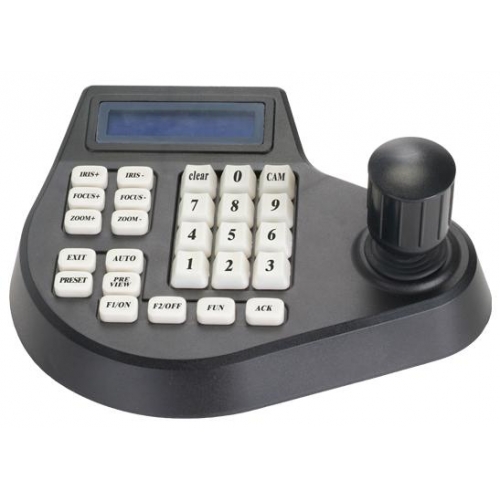

Intelligent 2D CCTV Multifunction PTZ Keybaord controller
Reward Points: 0
Shipping & Handling: 5-7 Working Days to Your Door
Features ：
1. The keyboard output adopts photoelectric insulated 485 control, which provides strong anti-jamming and long-range transmission.
2. The range for dome camera or decoder address setup: 1~255.
3. Variable-speed operation can be applied to the built-in dome of the high speed dome camera.
4. Pre-set positions can be setup and previewed in the high speed dome camera.
5. Up to four tour routes can be setup and previewed in the high speed dome camera, with each tour having a maximum of 16 pre-set positions, dwell time and speed for each pre-set positions programmable.
6. The high speed dome camera can be manually / automatically controlled.
7. Lens zoom ratio, focus and iris can be manually controlled.
8. More than one terminals, such as dome cameras and decoders, can be controlled.
9. Control can be realized by simultaneously using the DVR keyboard with one DVR mainframe or built-in hard disk VCR.. The keyboard output adopts photoelectric insulated 485 control, which provides strong anti-jamming and long-range transmission.
2. The range for dome camera or decoder address setup: 1~255.
3. Variable-speed operation can be applied to the built-in dome of the high speed dome camera.
4. Pre-set positions can be setup and previewed in the high speed dome camera.
5. Up to four tour routes can be setup and previewed in the high speed dome camera, with each tour having a maximum of 16 pre-set positions, dwell time and speed for each pre-set positions programmable.
6. The high speed dome camera can be manually / automatically controlled.
7. Lens zoom ratio, focus and iris can be manually controlled.
8. More than one terminals, such as dome cameras and decoders, can be controlled.
9. Control can be realized by simultaneously using the DVR keyboard with one DVR mainframe or built-in hard disk VCR.
| Controller | |
| Communication Mode | RS-485 for mainframe connection; RS-485 bus mode for controlling units connection |
| Protocol | PELCO_D / PELCO_P / PELCO_D1 / PELCO_P1 / NEW |
| Operation Temperature | Less than 90% |
| Operation Voltage | DC9V |
| Consumption | 500mA |
| Measure | 70（H）X 165（W）X 270（L）mm |
| Material | ABS Plastic |
| Protocol way | Single,dual or triple axis control |
| Joystick travel | 0℃~60℃ |
