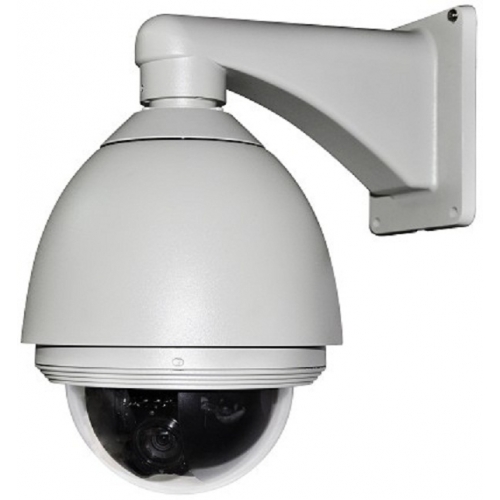

6.9-Inch 480TVL Outdoor / Indoor 23X Zoom Speed Dome PTZ CCTV Camera WDR
Price:
$899.00
Product Code: PTZ-3Reward Points: 0
Shipping & Handling: 5-7 Working Days to Your Door
Function Summary
- Idle motor function
- Power-on motor function
- Power-on motor function
- 256 presets, four cruise groups of 16 presets
- 8 alarm inputs, 2 alarm output auxiliary switch
- SONY movement 8 privacy zone, support the function Click to enlarge
- Power failure recovery
- Automatic identification protocol
- Automatically identify one movement
- Built-in thermostat system
- Coax Net technology, RS485 output option
Technicial Summary
1. Pan 360°continuously, Tilt 90°,180°Auto flip, Pan speed 0-280 degree Tilt Speed 0-120 degree
2. Support Display the level & vertical position and Zooming times
3. 128 presets, 1 programable pattern scan, each pattern scan time is above 60s
4. Intelligent focus, speed auto matching technology
5. 8 areas privacy protection
6. Built in 6000V lighting protection, surge proof design
7. Support RS485, auto protocol recognition
8. Support Parameters Power OFF Memory
9. Working temperature:-40℃-65℃
10. Power Supply: DC12V 2A
| PTZ Camera | |
| Type | PTZ CAMERA |
| Image Sensor | 1 / 4 "SONY CCD |
| Zoom Module | LG COLOUR TO BLACK |
| Signal System | 2:1 interlace |
| Effective Pixels | 752H) X582 (V) |
| Resolution | 480TV lines |
| Day / Night Mode | color to black / dual filter switch |
| White Balance | automatic |
| Build-in Lens | 23X, f = 3.84-88.4mm |
| Minimum Illumination | 0Lux-0.05Lux |
| Digital Zoom | 10X |
| Optical Zoom | 23X |
| BLC | ON / OFF OFF / AUTO BLC |
| Rotation Speed | horizontal rotation speed 280 ° / s, vertical rotation speed 240 ° / s |
| Pan/Tilt Range | 360 ° Cuntinuous Pan :0-90 ° / s Tilt / w AUTO Flip |
| Auto Flip | AUTO Flip when Tilt TO90° |
| Preset Points | 128 |
| Remote Control | RS485 interfaces, DNC Interface (COAXNET exclusive) |
| IR Distance | --- |
| Power | 12V DC 2A |
| WDR | Yes |
| Size | 6.9-Inch |
| Waterproof | No |
| LED / Laser Array | No |
| LED Lights | --- |
| Vandalproof | No |
| Mounting Options | Wall |
| OSD Menu | No |
