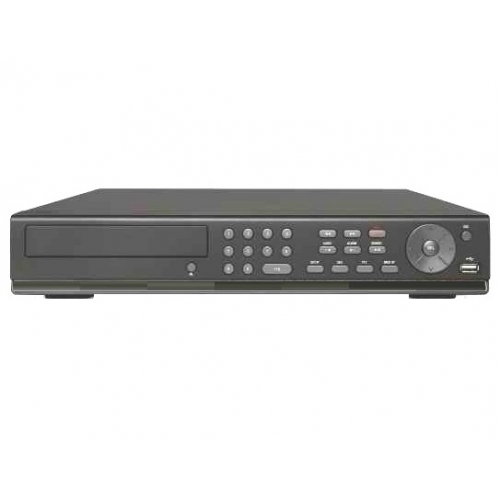

4CH 4 Channel Full 1080P HS-SDI H.264 Dual-Stream CCTV DVR Support 8 SATA Hard Drive and 1 eSATA HDMI Output Built-in Server for Internet and Mobile View

Product Features:

Dual-core CPU presents the powerful preview, recording, playback and network performance
4 channel 1080P(25/30)/1080i(50/60)/720P(25/30,50/60) HD-SDI video inputs
H.264 dual-stream video compression
4 channel@1080P realtime recording
HDMI / VGA / TV (BNC) back, GRID interface & smart search
Smart video detection: MD, camera blank, video loss
3D intelligent positioning with PTZ dome camera
Easy backup: USB devices, CD/DVD-RW & network download
Alarm triggering screen tips, buzzer, PTZ, e-mail & FTP upload
Support 8 SATA HDDs up to 24TB, 1 eSATA up synchronous video output
Up to 4 channel 1080P cameras realtime preview
4 channel simultaneous realtime play to 12TB, 3 USB2.0
Built-in web server, CMS(DSS/PSS) & DMSS

CCTV DVR
Compression	H.264 / G.711
Video Format	PAL/NTSC
Video Input	4 channel, HD-SDI video, BNC
Video Output	1 HDMI, 1 VGA, 1 TV( BNC, 1.0Vp-p, 75)
VGA Output Resolution	1080P(1920×1080), 1080P/4(960×540), 1080P/16(480×270), 720P(1280×720), 720P/4(640×360), 720P/16(320×180)
Live Frame Rate	Main Stream: 1080P , 1080P/4, 720P, 720P/4 (1~25/30fps/), Extra Stream: 1080P/4, 1080P/16, 720P/4, 720P/16 (1~25/30fps)
Network Resolution/fps	1080P , 1080P/4, 720P, 720P/4 (1~25/30fps/);
Record	Main Stream: 1080P , 1080P/4, 720P, 720P/4 (1~25/30fps/); Extra Stream: 1080P/4, 1080P/16, 720P/4, 720P/16 (1~25/30fps)
Playback	1080P , 1080P/4, 720P, 720P/4 (1~25/30fps/);
D1 Record Frame Rate	100fps(PAL)/120fps(NTSC)
CIF Record Frame Rate	Full D1 100fps(PAL)/120fps(NTSC)
Audio	Input: 4 channel, BNC(200-2800mV, 30KΩ); Output: 1 channel, BNC(200-3000mV, 5KΩ) 1 channel input, BNC(200-2800mV, 30KΩ), 1 channel output, BNC(200-3000mV, 5KΩ)
Alarm Input	16 channel
Alarm Output	Relay output: 6 channel
Alarm Mode	Disk full alarm; motion detection alarm; video loss alarm
Record Mode	Manual, Schedule(Regular(Continuous), MD(Video detection: Motion detection, Camera blank, Video loss), Alarm), StopTiming / Motion detection
Network Port	RJ-45 port (10/100M/1000M)
USB Port	3 × host 2.0
Hard Disk	Compatible with 8 SATA ports and 1 external SATA (E-SATA) ports (Hard Drive Not Included)
DVD-RW	n/a
PTZ Control	RS-485
Remote Control	Yes
USB Mouse	Yes
Power Supply	DC12V±10%
Operating Temperature	-10℃~ +55℃
Operating Humidity	10%～90% RH
