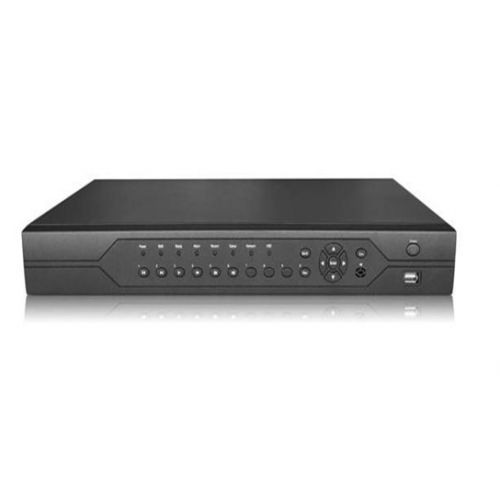

8-Channel H.264 Networked High Definition CCTV Video Recorder with mobile login and 8 alarms input

Price: $285.00
Product Code: SDDVRW106
Reward Points: 0
Shipping & Handling: 5-7 Working Days to Your Door
   - OR -

Product Features:

1. Video:8 input,3 output; Audio: 8 input, 1 output,Alarm: 8 input, 1 output                                                                                                                                                                                                    2. Linux embedded, H.264 Compression
3. Support Maximum 2 × 2T SATA HDD,Include Total Client Software,VGA,PTZ,IR controller,Mouse,power supply,adapter etc
4. Support Dual Stream,mutil-operation:realtime recording,playback,backup,remote viewing by network and mobile                                                                                          5. CPU: 1 * HI3515
6. Supply extra 2 x 12V Power Output for cctv cameras and alarm sensors,Support SD Card(Max 32G)                                                                                             7.  CIF 200/240 fps,100/120fps D1,8ch playback,Support 3G&WIFI
Compression H.264
Video Format NTSC / PAL
Video Input 8×BNC(1.0Vp-p, 75Ω)
Video Output 1×BNC(1.0Vp-p, 75Ω); 1×VGA
SPOT Output N/A
LOOP Output N/A
HDMI Output Resolution N/A
YPbPr Output Resolution N/A
VGA Output Resolution VGA:1280x1024
Live Frame Rate 200/240fps, 2CH D1 +6CH CIF
Network Resolution/fps >10 fps /channel @ CIF resolution
Playback 200/240fps
D1 Record Frame Rate 100fps(PAL)/120fps(NTSC)
CIF Record Frame Rate 200/240fps
Audio input: RCA×4; output: RCA×1
Alarm Input 8 channel
Alarm Output 1 channel
Alarm Mode Disk full alarm; motion detection alarm; video loss alarm
Remote Control Yes
Record Mode Timing / Motion detection
Network Port 1 x 100 M RJ-45
USB Port 2 × host 2.0
Hard Disk Compatible with 2 pieces of 3.5" SATA Hard Drives
DVD-RW Optional / USB
PTZ Control RS-485
USB Mouse Yes
Power Supply DC12V±10%
Operating Temperature -10℃~ +55℃
Operating Humidity 10%~90% RH
