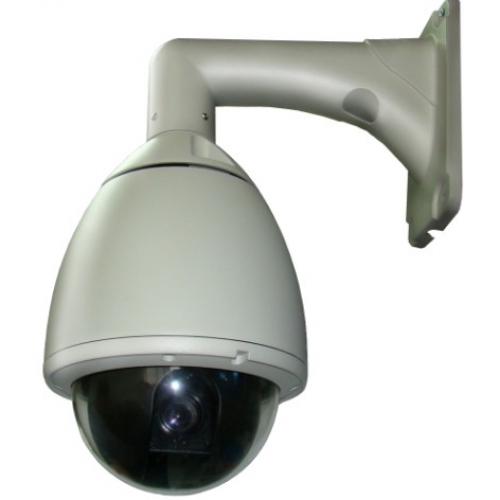

6.9-Inch 530TVL Single Layer Outdoor / Indoor 36X Zoom Speed Dome PTZ CCTV Camera
Reward Points: 0
Shipping & Handling: 5-7 Working Days to Your Door
Function Summary
- Idle motor function
- Power-on motor function
- 256 presets, four cruise groups of 16 presets
- 8 alarm inputs, 2 alarm output auxiliary switch
- SONY movement 8 privacy zone, support the function Click to enlarge
- Power failure recovery
- Automatic protocol identification
- Automatically identify one moving object
- Built-in thermostat system
- Coax Net technology, RS485 output option
Technicial Summary
1. Pan 360°continuously, Tilt 90°,180°Auto flip, Pan speed 0-280 degree Tilt Speed 0-120 degree
2. Support Display the level & vertical position and Zooming times
3. Support set camera title
4. Support set Power-on action
5. Support autocall preset or auto tour, pattern scan, auto scan and displayed area
6. Support alarm linkage, 8 way alarm in 2 way alarm out
7. 128 presets, 4 patterns scan, each patter recording time is above 15 minutes
8. Intelligent Focus, Speed Auto Matching Technology
9. 8-area privacy protection
10. Built-in 6000V lighting protection, surge proof design
11. Support RS485, Auto Protocol Recognition
12. Support Parameters Power OFF Memory
13. Working temperature: -40℃-65℃
14. Power supply: DC15V 2A or AC24V 2A
15. Single Layer
| CCTV Camera | |
| Type | PTZ CAMERA |
| PTZ Camera | |
| Image Sensor | 1 / 4 "SONY CCD |
| Zoom Module | SONY Low Lux Color to Black |
| Signal System | 2:1 interlace |
| Effective Pixels | 752H) X582 (V) |
| Resolution | 530TV lines |
| Day / Night Mode | color to black / dual filter switch |
| White Balance | automatic |
| Build-in Lens | 36X,f=3.4-122.4mm |
| Minimum Illumination | 0Lux-0.01Lux |
| Digital Zoom | 12X |
| Optical Zoom | 36X |
| BLC | horizontal rotation speed 280 ° / s, vertical rotation speed 240 ° / s |
| Rotation Speed | horizontal rotation speed 280 ° / s, vertical rotation speed 240 ° / s |
| Pan/Tilt Range | 360 ° Cuntinuous Pan :0-90 ° / s Tilt / w AUTO Flip |
| Auto Flip | AUTO Flip when Tilt / w AUTO Flip |
| Preset Points | 256 |
| Remote Control | RS485 interfaces, DNC Interface (COAXNET exclusive) |
| IR Distance | --- |
| Power | DC15V 2A / AC24V 2A |
| WDR | Yes |
| Size | 6.9-Inch |
| Waterproof | No |
| LED / Laser Array | No |
| LED Lights | --- |
| Vandalproof | No |
| Mounting Options | Wall |
| OSD Menu | No |
