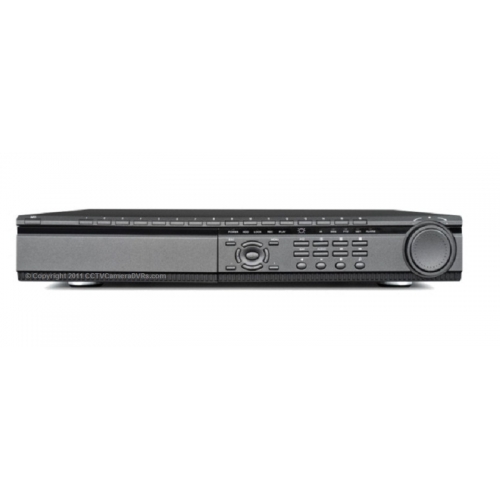

Professional Slim-Design 16-Channel H.264 Networked High Definition CCTV Video Recorder DVR

Product Features:

1. 16ch H.264 DVR
2. HISILICON 3520chipset
3. D1 Not real-time: 100fps(PAL), 120fps(NTSC)  CIF real-time: 400fps(PAL) , 4160fps(NTSC)
4. 16ch video input /1ch monitor output, YPbPr output, VGA output and spot output
5. 16ch playback
6. 2 USB port for mouse, backup and upgrade
7. Recording bit/frame adjustable
8. Support PTZ(RS4165) / Alarm(4ch)
9. Support 4ch audio in / 1ch audio output
10. Support CMS and IE browser
11. Support 2 pcs 2TB SATA HDD
12. Surveillance Application available for iPhone, Android, Blackberry, Windows Mobile and Symbian.

CCTV DVR
Compression	H.264
Video Format	NTSC / PAL
Video Input	16×BNC(1.0Vp-p, 75Ω)
Video Output	1×BNC(1.0Vp-p, 75Ω); 1×VGA
SPOT Output	Yes
LOOP Output
HDMI Output Resolution
YPbPr Output Resolution	1920*1080
VGA Output Resolution	1280×1024
Live Frame Rate	16 ×25fps(PAL), 16×30fps(NTSC)
Network Resolution/fps	＞10 fps /channel @ CIF resolution
Record	16Ch D1 non-Real-time recording,each channel is 6 frames
Playback	D1: 100fps(PAL)/120fps(NTSC); CIF: 400fps(PAL)/480fps(NTSC)
D1 Record Frame Rate	100fps(PAL)/120fps(NTSC)
CIF Record Frame Rate	400fps(PAL)/480fps(NTSC)
Audio	input: RCA×4; output: RCA×1
Alarm Input	16
Alarm Output	Relay output: Normal open (NO); Normal close (NC); COM
Alarm Mode	Disk full alarm; motion detection alarm; video loss alarm
Record Mode	Time/sensor/motion detection
Network Port	1, 100M  RJ-45
USB Port	2×host 2.0
Hard Disk	2× 2000G
DVD-RW	Optional / USB
PTZ Control	RS-485
Remote Control	Yes
USB Mouse	Yes
Power Supply	AC220V(110V)
Operating Temperature	-10℃--＋55℃
Operating Humidity	10％--90％
