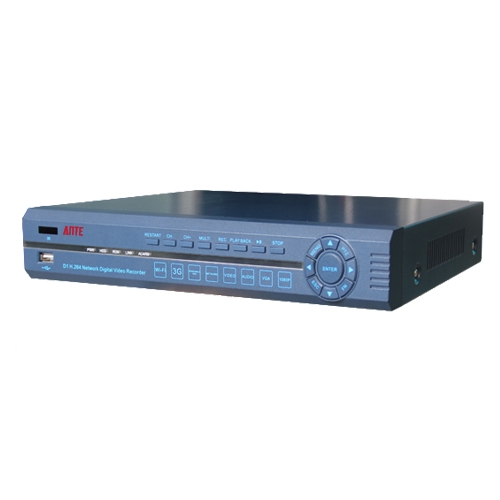

8-Channel H.264 Networked High Definition CCTV Video Recorder compatible with HDMI Video Output
Reward Points: 0
Shipping & Handling: 5-7 Working Days to Your Door
1. featured: HDMI, 3G, WIFI, SD card
2. New Look: The new design concept, together with South Korea leading the trend of the blue primary colors
3. Video resolution: 2D1+6CIF;
4. Novel Playback mode: priority decoding, split decoding, decoding at full speed;
5. Backup: support U disk, SD card, USB mobile hard disk, USB recording, network backup;
6. own domain name resolution, easy network monitoring;
7. support for preview and playback images of electronic image amplification;
8. Mobile Surveillance: Supports various types of mobile monitoring;
9. supports 26 different languages;
10. the use of circuit protection design, electrical components to be effective in preventing static electricity
and lightning breakdown, a unique triple watchdog function to ensure stable operation of DVR.
CCTV DVR | |
Compression | H.264 |
Video Format | NTSC / PAL |
Video Input | 8×BNC(1.0Vp-p, 75Ω) |
Video Output | 1×BNC(1.0Vp-p, 75Ω);1×VGA |
SPOT Output | N/A |
LOOP Output | N/A |
HDMI Output Resolution | 1920×1080i50/1920×1080i60 |
YPbPr Output Resolution | N/A |
VGA Output Resolution | 1280×1024 |
Live Frame Rate | 8×25fps(PAL), 8×30fps(NTSC) |
Network Resolution/fps | CIF each channel>20fps |
Record | 200fps/PAL,240fps/NTSC, 2D1+6CIF |
Playback | 1/4 channel |
D1 Record Frame Rate | 200fps/PAL,240fps/NTSC |
CIF Record Frame Rate | 200fps/PAL,240fps/NTSC |
Audio | RCA×4 input, RCA×1 output |
Alarm Input | 4channel |
Alarm Output | Relay output: Normal open (NO); Normal close (NC); COM |
Alarm Mode | sensor input alarm; disk full alarm; motion detection alarm; video loss alarm |
Remote Control | Yes |
Record Mode | Time/sensor/motion detection |
Network Port | 1, RJ-45 |
USB Port | 2, USB2.0 |
Hard Disk | Support 1TB-2TB(SATA HDD)(maxi)x1pc, NO HARD DRIVE INCLUDED |
DVD-RW | Optional / USB |
PTZ Control | No |
USB Mouse | Yes |
Power Supply | AC220V(110V) |
Operating Temperature | -10℃--+55℃ |
Operating Humidity | 10%--90% |
