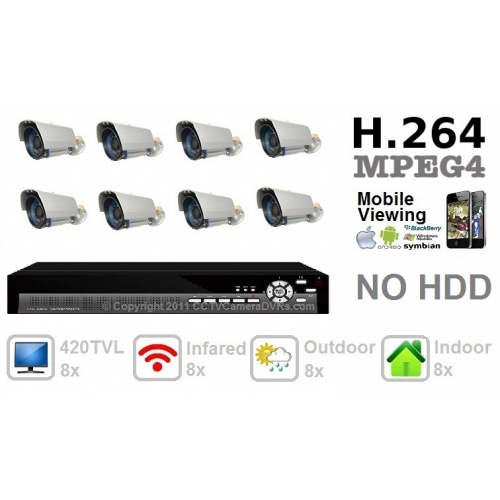

420TVL 8 ch Channel CCTV Camera DVR Security System Kit Inc Outdoor Indoor Bullet Camera and H.264 DVR with Mobile and Network Access NO Hard Drive

Price: $770.00
Brand: Anglian Video
Product Code: KIT8-1AW
Reward Points: 0
Shipping & Handling: 3-5 Working Days to Your Door
   - OR -

Package Include:

  1. 1 x 8 Channel DVR
  2. 8 x 420TVL IR 20M Outdoor / Indoor Bracket Bullet Camera
  3. 8 x Plug and Play Cables
  4. 1 x Remote Control
  5. 1 x Mouse

Please check “Specification” for Package Details


DVR 8 Channel DVR
Remote Control 1
Camera 8 x 420TVL IR 15M Indoor / Outdoor Bullet Bracket Camera
Hard Drive NO Hard Drive
Plug & Play Cable (60 Feet) 8
Plug & Play Cable (150 Feet) 0
Mouse 1
Compression H.264
Video Format PAL/NTSC
Video Input 8 channel BNC
Video Output 1 channel BNC, 1 channel VGA
SPOT Output
LOOP Output
HDMI Output Resolution
YPbPr Output Resolution
VGA Output Resolution VGA (800×600 1024×768 1280x1024 optional)
Live Frame Rate 8×25fps(PAL), 8×30fps(NTSC)
Network Resolution/fps >10 fps /channel @ CIF resolution
Record D1: 100fps(PAL)/120fps(NTSC) CIF: 100fps(PAL)/120fps(NTSC)
Playback 100fps(PAL)/120fps(NTSC)
D1 Record Frame Rate 100fps(PAL)/120fps(NTSC)
CIF Record Frame Rate 100fps(PAL)/120fps(NTSC)
Audio Input: RCA x 8, Output: RCA x 1
Alarm Input 8 Channels
Alarm Output Relay output: Normal open (NO); Normal close (NC); COM
Alarm Mode Disk full alarm; motion detection alarm; video loss alarm
Remote Control Yes
Record Mode Timing / Motion detection
Network Port 1 x 100 M RJ-45
USB Port 2 × host 2.0
Hard Disk Compatible with 2 pieces of 3.5" SATA Hard Drive
DVD-RW Optional / USB
PTZ Control RS-485
USB Mouse Yes
Power Supply DC12V±10%
Operating Temperature -10℃~ +55℃
Operating Humidity 10%~90% RH
CCTV Camera
Type Outdoor / Indoor Bullet Bracket Camera x 8
Image Sensor 1/4 SHARP CCD
Resolution 420TVL
Lens 3.6mm
InfraRed Camera Yes
IR Range 20M
IR Switch Auto
White Balance Auto
OSD Menu Yes
Environment Outdoor / Indoor
Operation Temperature -10℃ - 50℃
Power DC 12V
Vandal-Proof No
Waterproof IP55
Varifocal No
Focal Type Static
Colour Silver
Housing Metal
Dimension 152mm x 88mm x 86mm
Weight 1.27KG
