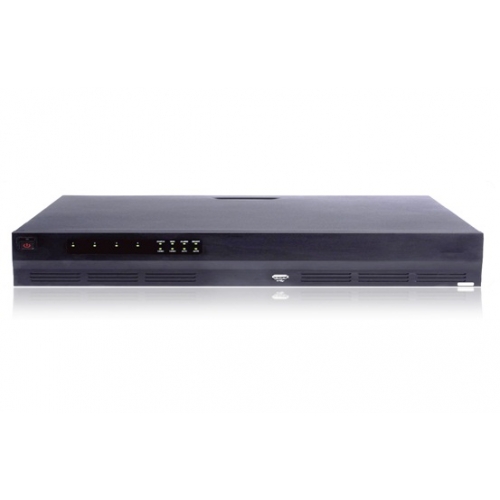

4CH 4 Channel Full D1 H.264 High Definition HD-SDI DVR Support 8 SATA Hard Drive 4 External SATA E-SATA Ports Network and Mobile Browsing and HDMI Port

Price: $2,650.00
Price in reward points: 26500
Brand: Anglian Video
Product Code: SDIDR4-01
Reward Points: 100
Shipping & Handling: 5-7 Working Days to Your Door
* Add 3G HD-SDI Cable:

* Expand Your DVR Storage Capacity:

* Add a SDI Converter:

   - OR -

Product Features:

  1. Dual-core CPU presents the powerful preview, recording, playback and network performance
  2. 4 channel 1080P(25/30)/1080i(50/60)/720P(25/30,50/60) HD-SDI video inputs
  3. H.264 dual-stream video compression
  4. 4 [email protected] realtime recording
  5. HDMI / VGA / TV (BNC) back, GRID interface & smart search
  6. Smart video detection: MD, camera blank, video loss
  7. 3D intelligent positioning with PTZ dome camera
  8. Easy backup: USB devices, CD/DVD-RW & network download
  9. Alarm triggering screen tips, buzzer, PTZ, e-mail & FTP upload
  10. Support 8 SATA HDDs up to 24TB, 1 eSATA up synchronous video output
  11. Up to 4 channel 1080P cameras realtime preview
  12. 4 channel simultaneous realtime play to 12TB, 3 USB2.0
  13. Built-in web server, CMS(DSS/PSS) & DMSS


Compression H.264 / G.711
Video Format PAL/NTSC
Video Input 4 channel, HD-SDI video, BNC
Video Output 1 HDMI, 1 VGA, 1 TV( BNC, 1.0Vp-p, 75)
VGA Output Resolution 1080P(1920×1080), 1080P/4(960×540), 1080P/16(480×270), 720P(1280×720), 720P/4(640×360), 720P/16(320×180)
Live Frame Rate Main Stream: 1080P , 1080P/4, 720P, 720P/4 (1~25/30fps/), Extra Stream: 1080P/4, 1080P/16, 720P/4, 720P/16 (1~25/30fps)
Network Resolution/fps 1080P , 1080P/4, 720P, 720P/4 (1~25/30fps/);
Record Main Stream: 1080P , 1080P/4, 720P, 720P/4 (1~25/30fps/); Extra Stream: 1080P/4, 1080P/16, 720P/4, 720P/16 (1~25/30fps)
Playback 1080P , 1080P/4, 720P, 720P/4 (1~25/30fps/);
D1 Record Frame Rate 100fps(PAL)/120fps(NTSC)
CIF Record Frame Rate Full D1 100fps(PAL)/120fps(NTSC)
Audio Input: 4 channel, BNC(200-2800mV, 30KΩ); Output: 1 channel, BNC(200-3000mV, 5KΩ) 1 channel input, BNC(200-2800mV, 30KΩ), 1 channel output, BNC(200-3000mV, 5KΩ)
Alarm Input 16 channel
Alarm Output Relay output: 6 channel
Alarm Mode Disk full alarm; motion detection alarm; video loss alarm
Record Mode Manual, Schedule(Regular(Continuous), MD(Video detection: Motion detection, Camera blank, Video loss), Alarm), StopTiming / Motion detection
Network Port RJ-45 port (10/100M/1000M)
USB Port 2 × host 2.0
Hard Disk Compatible with 8 SATA ports, 6 HDDs + 1 CD/DVD-RW, Up to 24TB and 4 External SATA ports, up to 12TB
PTZ Control RS-485
Remote Control Yes
USB Mouse Yes
Power Supply DC12V±10%
Operating Temperature -10℃~ +55℃
Operating Humidity 10%~90% RH
